NSK

51244M - NSK Single Direction Thrust Bearing - 220x300x63mm

Name: 51244M - NSK Single Direction Thrust Bearing - 220x300x63mm
Brand: NSK
SKU: 51244m-nsk
Availability: InStock

SKU: 51244m-nsk

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$3,515.02

51244M - NSK Single Direction Thrust Bearing - 220x300x63mm

Description

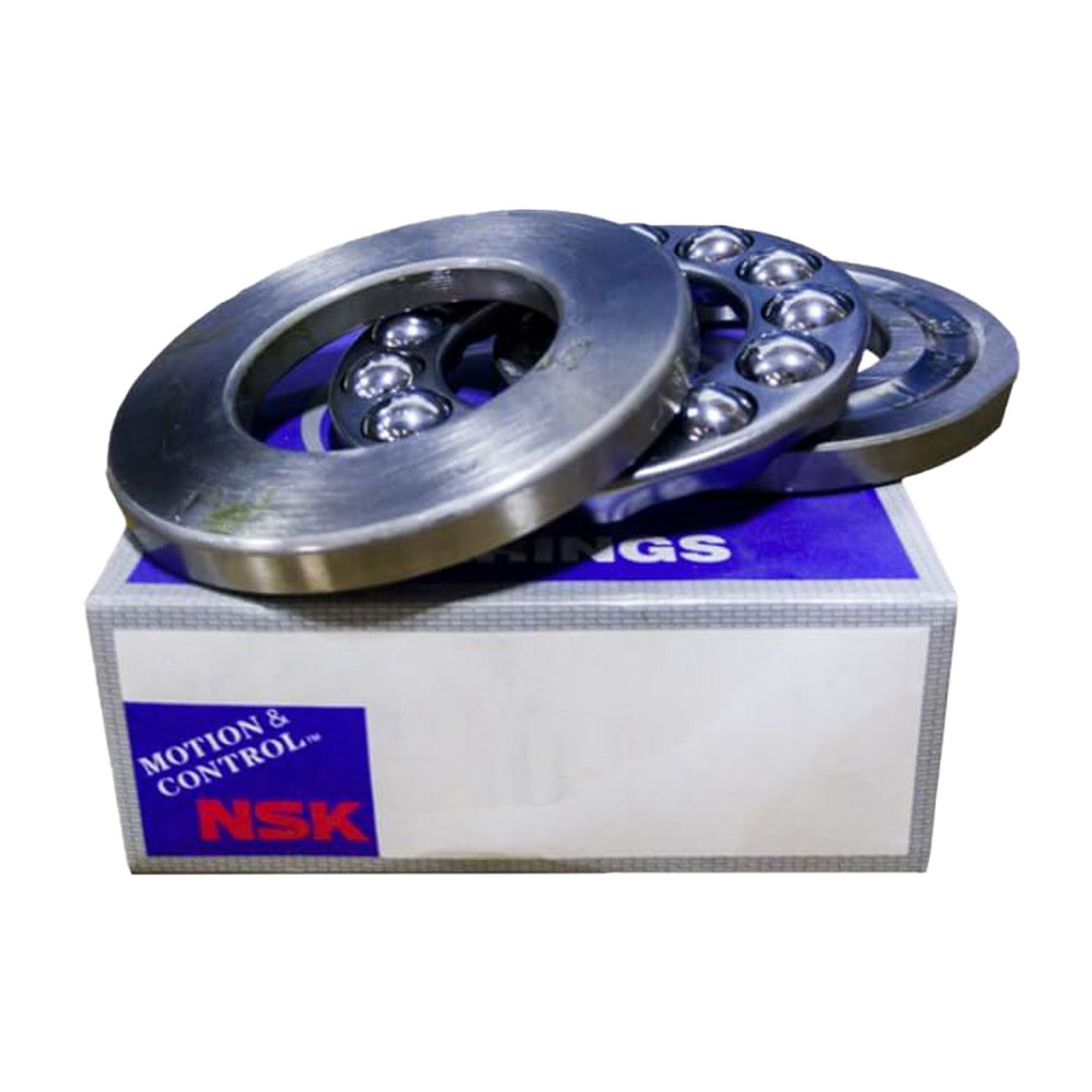

This 51244M bearing is a Single direction thrust bearing with a flat housing locating washer and a machined brass cage, ball centred. The bearing's dimensions are 220x300x63.

512	44	M
Ball Thrust, Single Direction, Metric, Extra Light	220mm - Bore Size	Brass Cage

Product Information

BRAND:

SKU:51244m-nsk

AVAILABILITY:In Stock ✅

WEIGHT:13.6 kg

Technical Data

Inside Diameter (mm):

220mm

Outside Diameter (mm):

300mm

Width (mm):

63mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

325

Static Load Rating (kN):

1210

Grease Limiting Speed (r/min):

670

Oil Limiting Speed (r/min):

1000

Description

This 51244M bearing is a Single direction thrust bearing with a flat housing locating washer and a machined brass cage, ball centred. The bearing's dimensions are 220x300x63.

512	44	M
Ball Thrust, Single Direction, Metric, Extra Light	220mm - Bore Size	Brass Cage

Product Information

BRAND:

SKU:51244m-nsk

AVAILABILITY:In Stock ✅

WEIGHT:13.6 kg

Technical Data

Inside Diameter (mm):

220mm

Outside Diameter (mm):

300mm

Width (mm):

63mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

325

Static Load Rating (kN):

1210

Grease Limiting Speed (r/min):

670

Oil Limiting Speed (r/min):

1000
