NSK

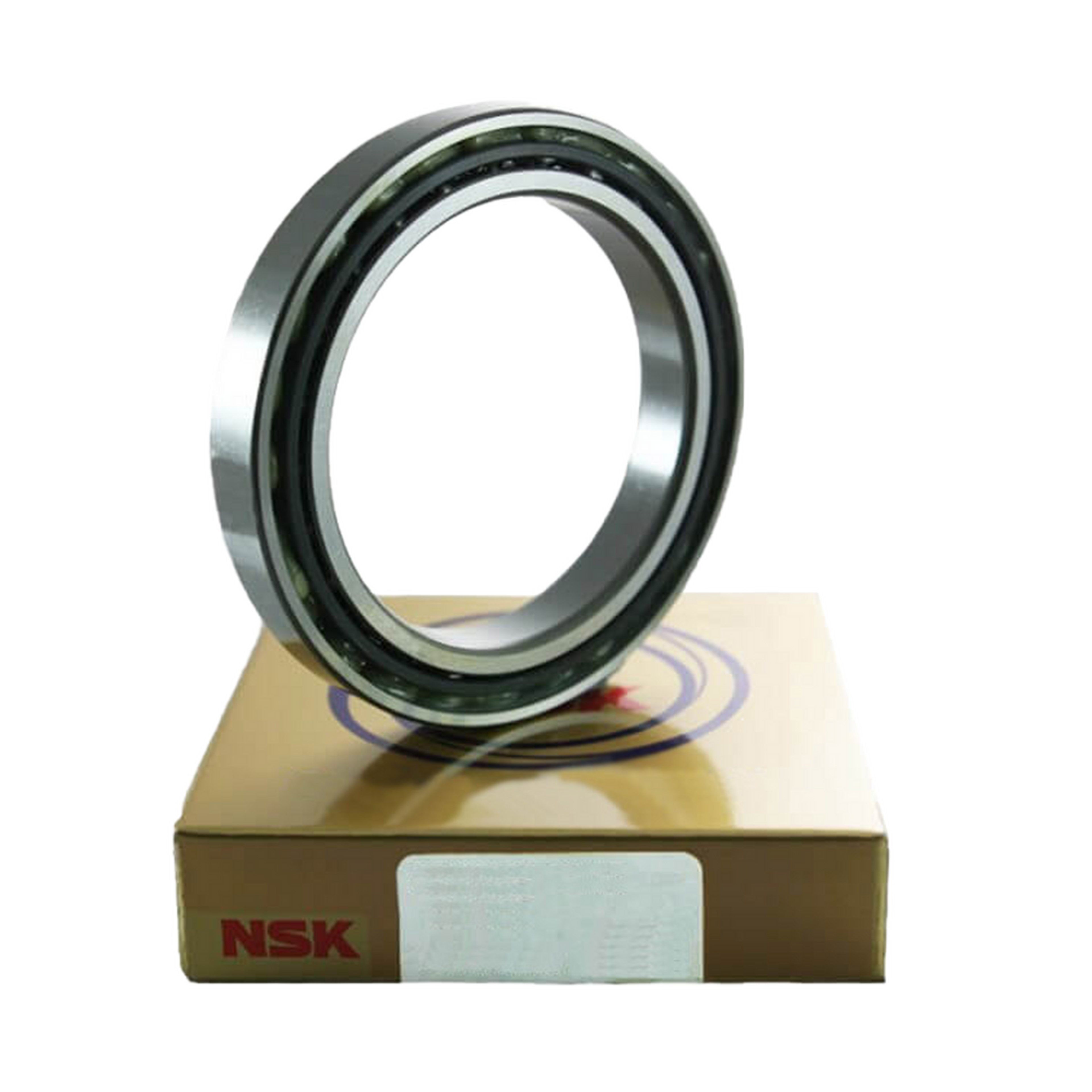

70BTR10STYNDBLP4A - NSK Ultra High Speed Angular Contact - 70x110x18
SKU
: 70btr10styndblp4a-nsk
Availability
: In Stock ✅
Bulk Pricing :
Description
This 70BTR10STYNDBLP4A bearing is a super precision angular contact thrust bearing with a 40° contact angle, steel balls and a polyamide cage, this bearing is a back to back arranged double set of bearings with a light preload and a P3 precision rating. The bearing's dimensions are 70x110x18.
| 70 | BTR | 10 | S | TYN | DB | L | P4A | ||
|---|---|---|---|---|---|---|---|---|---|
| Bore Size - 70mm | 40° Contact Angle | 10 Series | Rings and Rolling Elements - Bearing Steel | Ball Guided Polyamide Resin Cage | Open Type | Duplex Back to Back | Light | Precision Rating | Precision Rating |
Product Information
SKU: Availability:
In Stock ✅
Technical Data
Inside Diameter (mm)
70mm
Outside Diameter (mm)
110mm
Width (mm)
18mm
Cage Type
Plastic
Seals Or Shields
Open Type
Clearance
Standard
Dynamic Load Rating (kN)
32
Static Load Rating (kN)
63
Oil Limiting Speed (r/min)
9500
Preload
Light
DescriptionThis 70BTR10STYNDBLP4A bearing is a super precision angular contact thrust bearing with a 40° contact angle, steel balls and a polyamide cage, this bearing is a back to back arranged double set of bearings with a light preload and a P3 precision rating. The bearing's dimensions are 70x110x18.
Product InformationBRANDS: SKU: 70btr10styndblp4a-nsk Availability:In Stock ✅ 0.601 kg Technical DataInside Diameter (mm)70mm Outside Diameter (mm)110mm Width (mm)18mm Cage TypePlastic Seals Or ShieldsOpen Type ClearanceStandard Dynamic Load Rating (kN)32 Static Load Rating (kN)63 Oil Limiting Speed (r/min)9500 PreloadLight | |||||||||||||||||||
Product InformationBRANDS: SKU: 70btr10styndblp4a-nsk Availability:In Stock ✅ 0.601 kg Technical DataInside Diameter (mm)70mm Outside Diameter (mm)110mm Width (mm)18mm Cage TypePlastic Seals Or ShieldsOpen Type ClearanceStandard Dynamic Load Rating (kN)32 Static Load Rating (kN)63 Oil Limiting Speed (r/min)9500 PreloadLight | |||||||||||||||||||
