SKF

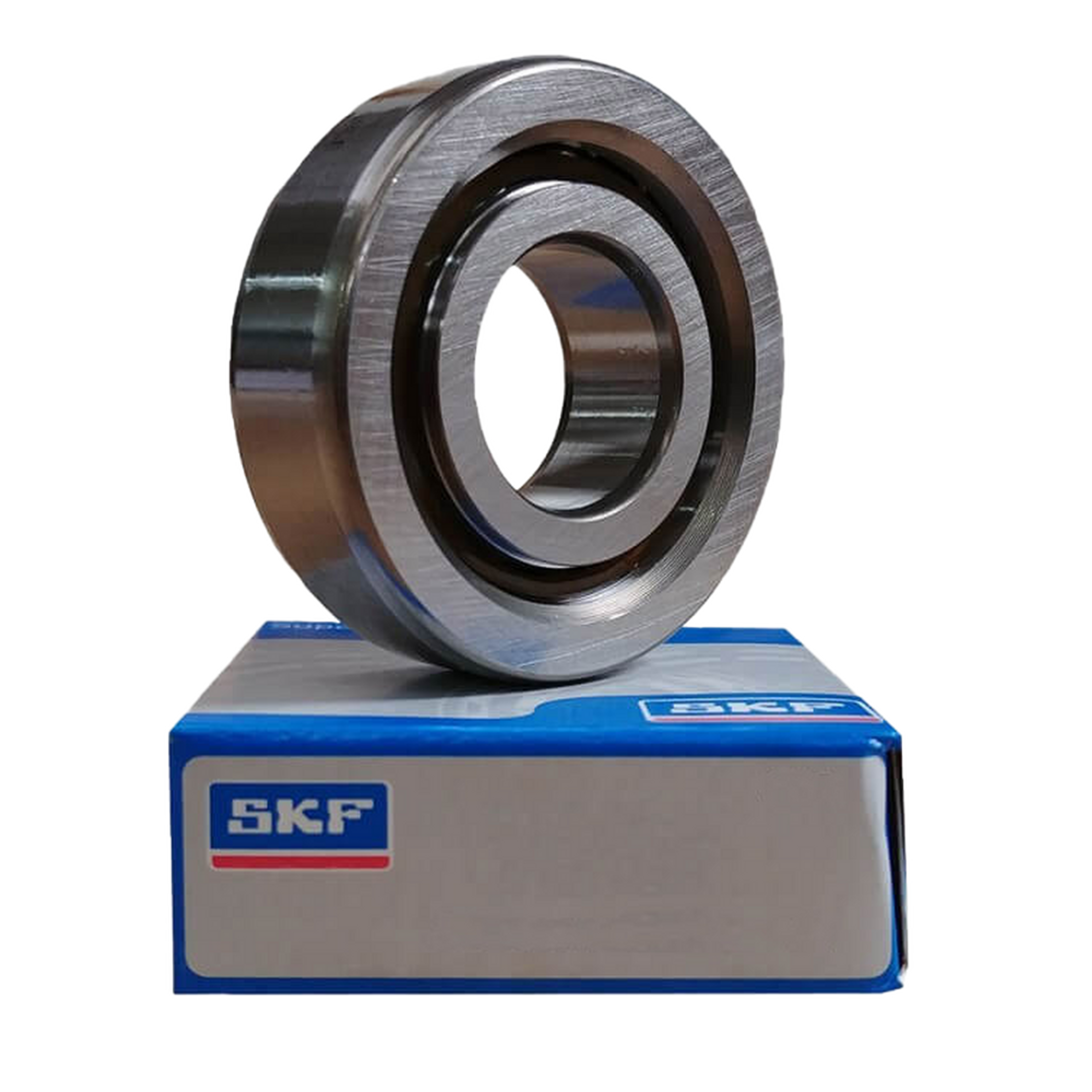

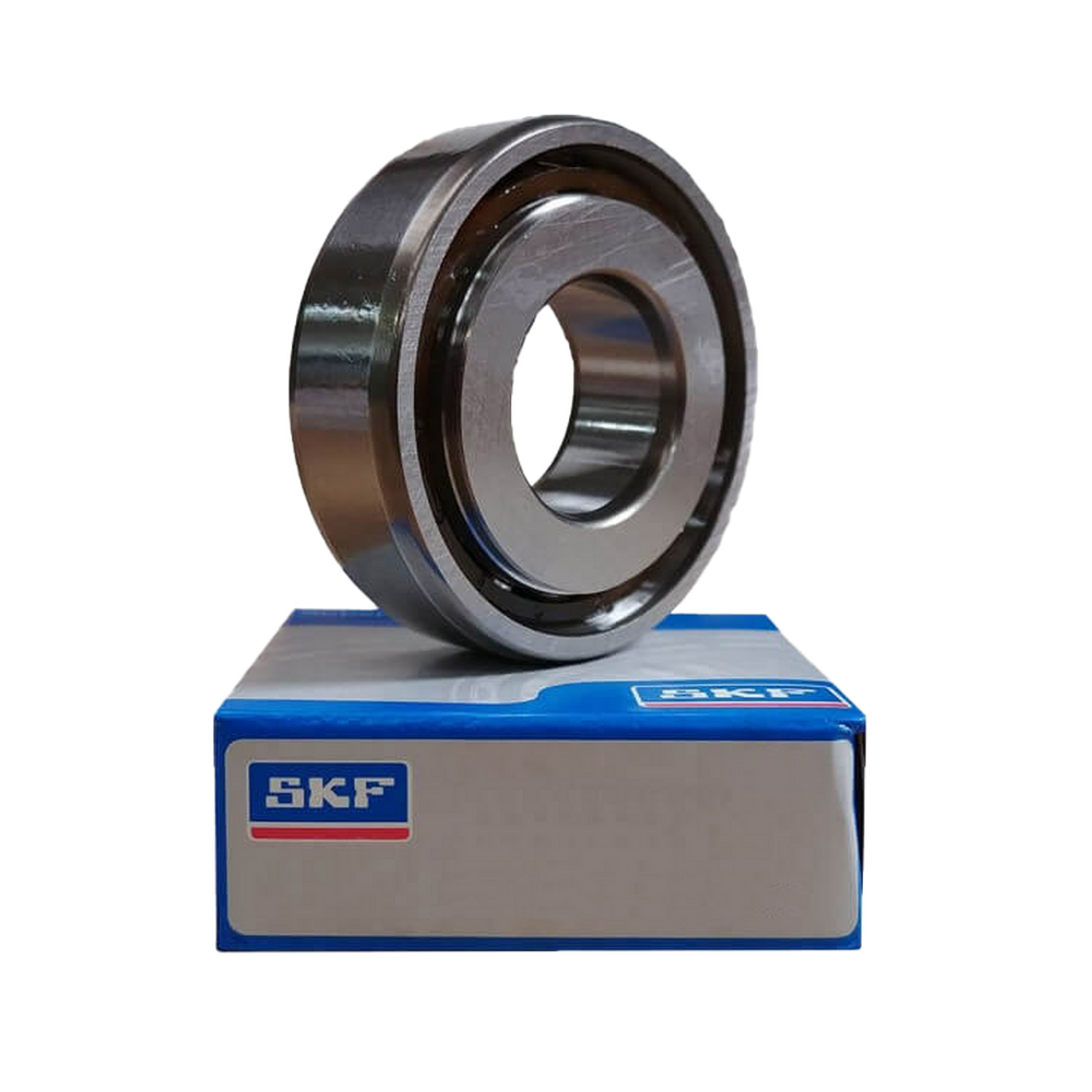

BSA208CGB - SKF Single Direction Angular Contact Thrust - 40x80x18mm
SKU
: bsa208cgb-skf
Availability
: In Stock ✅
Bulk Pricing :
Description
Engineered by SKF, the BSA208CGB Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSA208 CGB bearing are 40x80x18mm.
| BSA2 | 08 | C | GB |
|---|---|---|---|
| Single Direction Bearing - ISO Dimension Series 02 | 40mm - Bore Size | Improved Internal Design | Universally Matchable, Heavy Preload |
Key Features
High Load Capacity
Designed to withstand heavy radial loads and heavy axial loads in one direction, the BSA208CGB Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs.
Precision Engineering
Manufactured with high precision to ensure smooth operation, the BSA208 CGB Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan.
Angular Contact Design
This Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives.
Product Information
SKU: Availability:
In Stock ✅
Technical Data
Inside Diameter (mm)
40mm
Outside Diameter (mm)
80mm
Width (mm)
18mm
Cage Type
Plastic
Seals Or Shields
Open Type
Clearance
Standard
Dynamic Load Rating (kN)
42.5
Static Load Rating (kN)
112
Fatigue Load Rating (kN)
4.15
Grease Limiting Speed (r/min)
6300
Oil Limiting Speed (r/min)
7500
Preload
Medium
Contact Angle
62
DescriptionEngineered by SKF, the BSA208CGB Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSA208 CGB bearing are 40x80x18mm.
Key FeaturesHigh Load CapacityDesigned to withstand heavy radial loads and heavy axial loads in one direction, the BSA208CGB Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs. Precision EngineeringManufactured with high precision to ensure smooth operation, the BSA208 CGB Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan. Angular Contact DesignThis Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives. Product InformationBRANDS: SKU: bsa208cgb-skf Availability:In Stock ✅ 0.419 kg Technical DataInside Diameter (mm)40mm Outside Diameter (mm)80mm Width (mm)18mm Cage TypePlastic Seals Or ShieldsOpen Type ClearanceStandard Dynamic Load Rating (kN)42.5 Static Load Rating (kN)112 Fatigue Load Rating (kN)4.15 Grease Limiting Speed (r/min)6300 Oil Limiting Speed (r/min)7500 PreloadMedium Contact Angle62 | |||||||||
Product InformationBRANDS: SKU: bsa208cgb-skf Availability:In Stock ✅ 0.419 kg Technical DataInside Diameter (mm)40mm Outside Diameter (mm)80mm Width (mm)18mm Cage TypePlastic Seals Or ShieldsOpen Type ClearanceStandard Dynamic Load Rating (kN)42.5 Static Load Rating (kN)112 Fatigue Load Rating (kN)4.15 Grease Limiting Speed (r/min)6300 Oil Limiting Speed (r/min)7500 PreloadMedium Contact Angle62 | |||||||||
