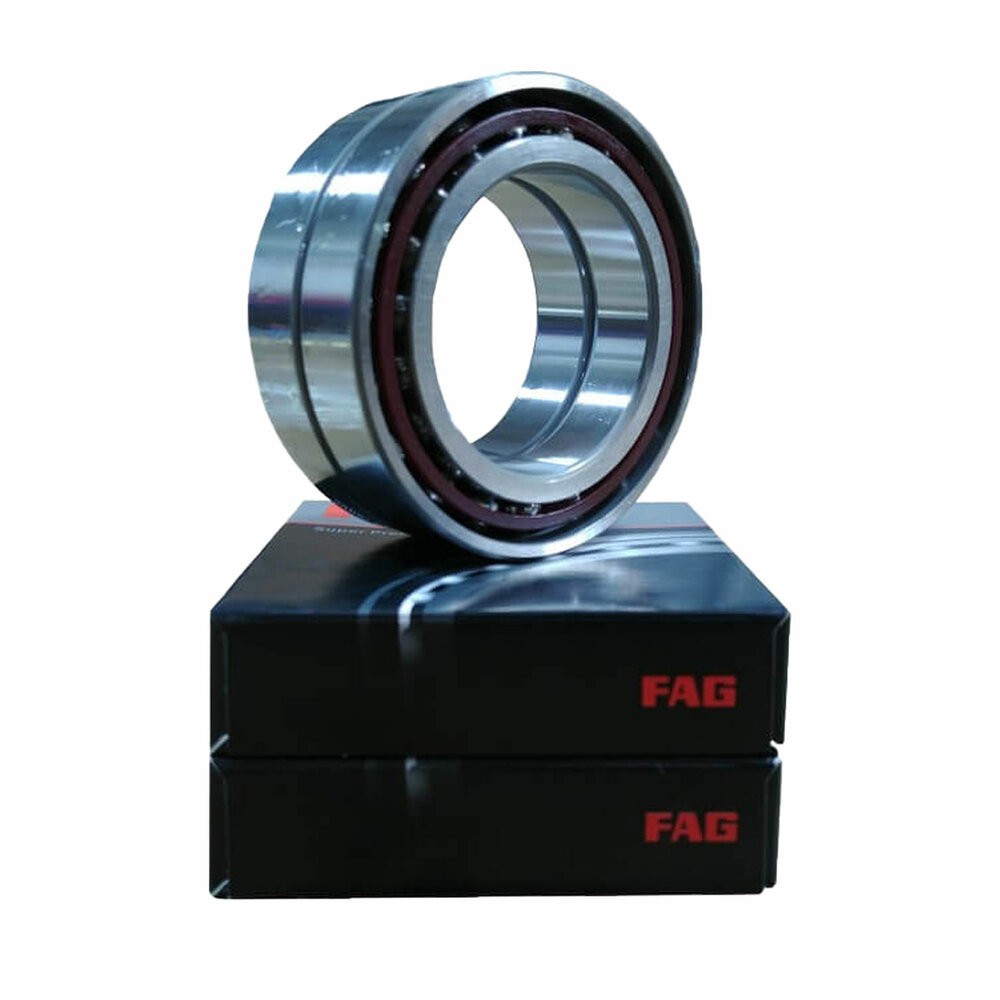

B71910-E-2RSD-T-P4S-UL - FAG Super Precision Angular Contact - 50x72x12mm
SKU: b71910-e-2rsd-t-p4s-ul-fag
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This B71910-E-2RSD-T-P4S-UL bearing is a Super Precision angular contact bearing with 2 rubber seals, a 25° contact angle and a high speed design. This bearing is a universal fit single bearing with a light preload and a P4 precision rating. The bearing's dimensions are 50x72x12. These bearings are well suited to Machine Tool applications, the main spindle bearing arrangements in particular, and are known for their guidance accuracy and high-speed capabilities.
| B | 719 | 10 | E | 2RSD | T | P4S | UL |
|---|---|---|---|---|---|---|---|
| Standard Steel Balls | Light Series | 50mm - Bore Size | 25° Contact Angle | Sealed | Laminated Fabric Cage | Precision Rating | Single Universal, Light Preload |
Product Information
Technical Data
Inside Diameter (mm):
50mm
Outside Diameter (mm):
72mm
Width (mm):
12mm
Cage Type:
Laminated Fabric
Clearance:
Standard
Dynamic Load Rating (kN):
18.6
Static Load Rating (kN):
11.3
Grease Limiting Speed (r/min):
17000
Seals Or Shields:
Two Rubber Seals
Preload:
Light
DescriptionThis B71910-E-2RSD-T-P4S-UL bearing is a Super Precision angular contact bearing with 2 rubber seals, a 25° contact angle and a high speed design. This bearing is a universal fit single bearing with a light preload and a P4 precision rating. The bearing's dimensions are 50x72x12. These bearings are well suited to Machine Tool applications, the main spindle bearing arrangements in particular, and are known for their guidance accuracy and high-speed capabilities.
Product InformationBRAND: SKU:b71910-e-2rsd-t-p4s-ul-fag AVAILABILITY:In Stock ✅ WEIGHT:0.12 kg Technical DataInside Diameter (mm):50mm Outside Diameter (mm):72mm Width (mm):12mm Cage Type:Laminated Fabric Clearance:Standard Dynamic Load Rating (kN):18.6 Static Load Rating (kN):11.3 Grease Limiting Speed (r/min):17000 Seals Or Shields:Two Rubber Seals Preload:Light | ||||||||||||||||
