IKO

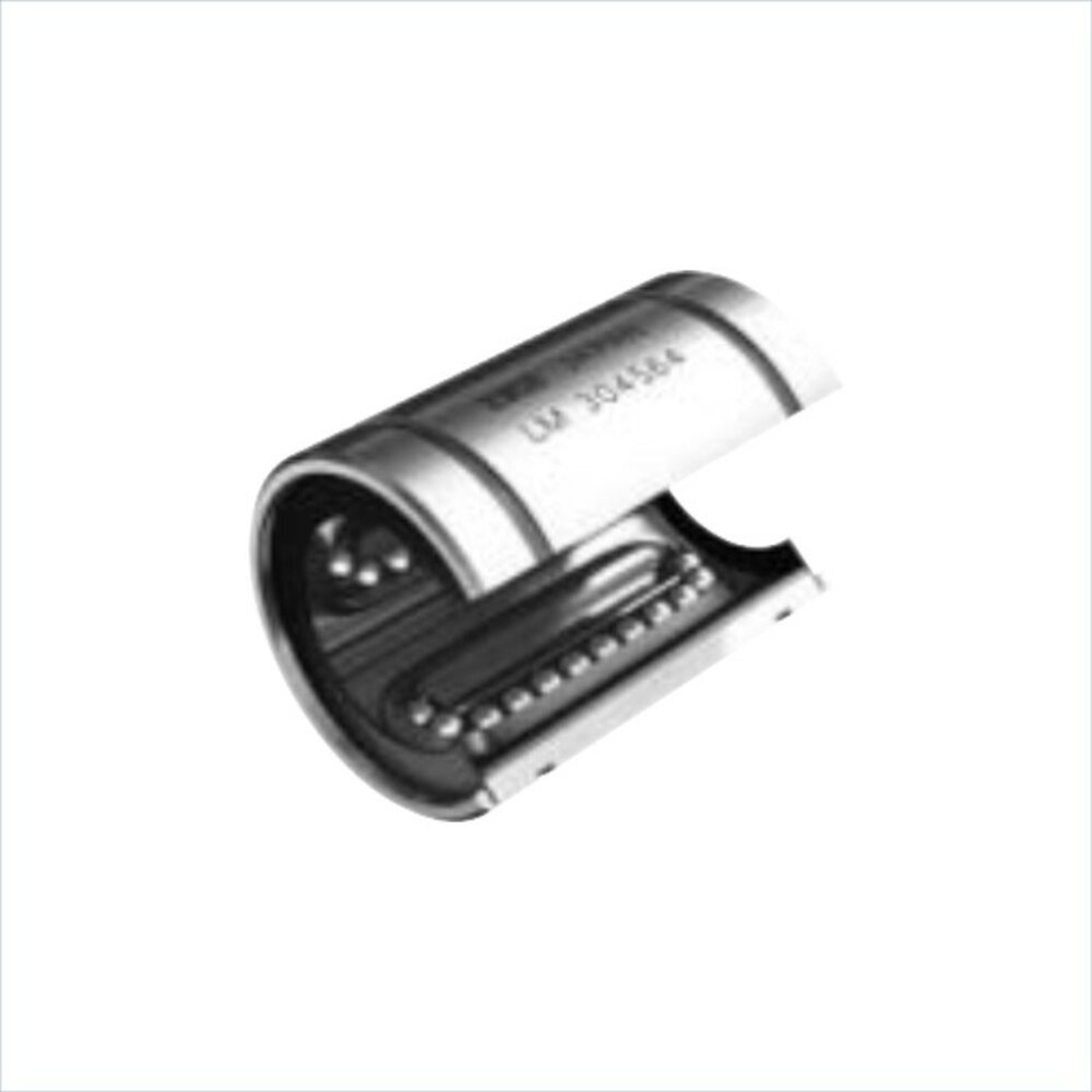

LM132332UU - IKO Linear Bushing - 13x23x32 mm
SKU
: lm132332uu-iko
Availability
: In Stock ✅
Bulk Pricing :
C$91.09
Description
This LM132332UU is a Standard Metric Linear Bushing with Two End Seal. The Bearing's dimensions are 13x23x32 mm
| LM | 13 | 23 | 32 | UU | ||||
|---|---|---|---|---|---|---|---|---|
| Model | Inscribed Circle Diameter (mm) | Outside Diameter of External Cylinder (mm) | External Cylinder Length (mm) | Retainer Material - High Carbon Steel | Material Type - High Carbon Steel | Two End Seals | Shape of External Cylinders - Standard Type | High Accuracy Class |
Product Information
BRANDS:
SKU: Weight:
SKU: lm132332uu-iko
Availability:
In Stock ✅
0.043 kg
Technical Data
Inside Diameter (mm)
13mm
Outside Diameter (mm)
23mm
Width (mm)
32mm
Dynamic Load Rating (kN)
0.306
Static Load Rating (kN)
0.716
Ball Raceway
4
DescriptionThis LM132332UU is a Standard Metric Linear Bushing with Two End Seal. The Bearing's dimensions are 13x23x32 mm
