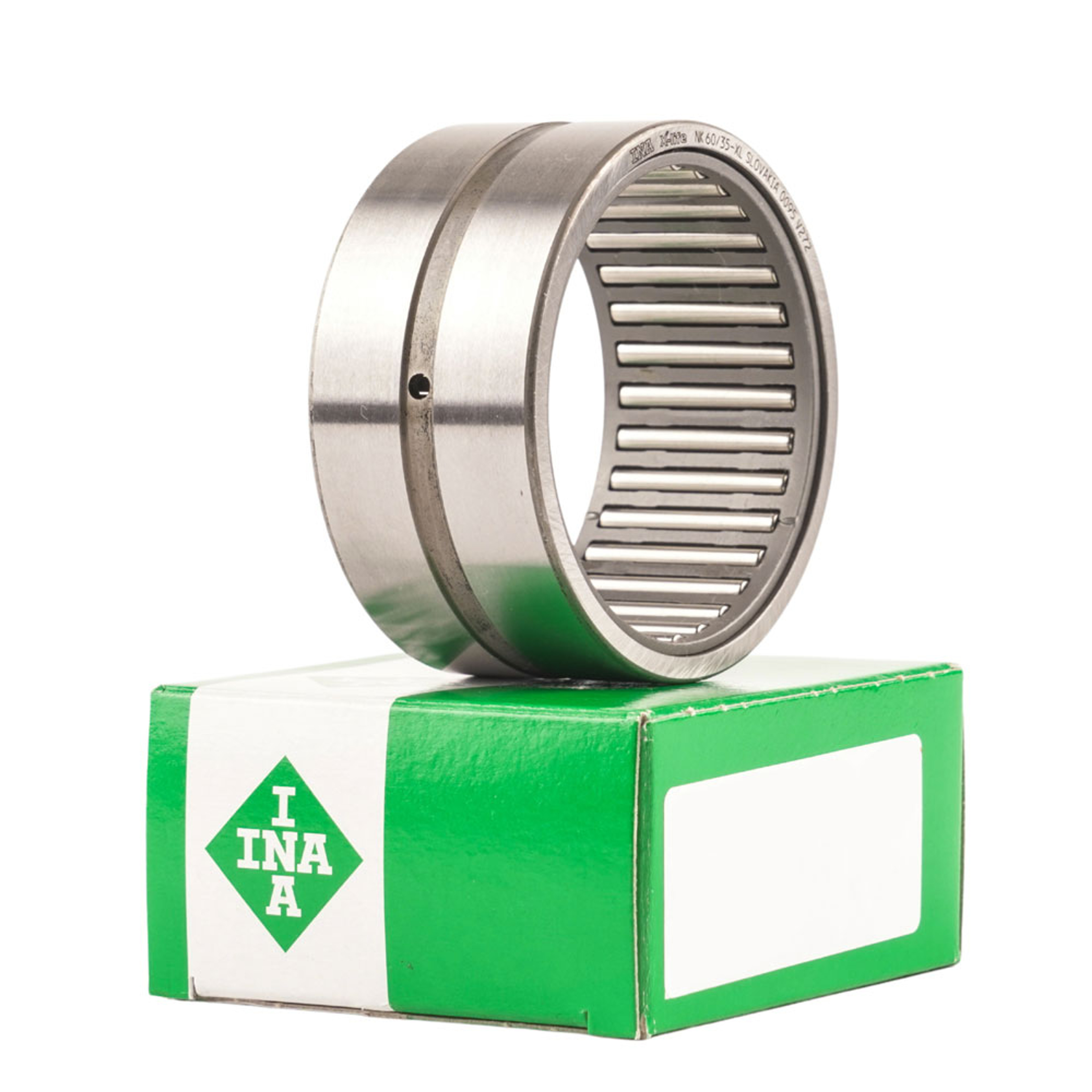

NK30/30-TV-XL INA Machined Needle Roller Bearing - 30X40X30MM
SKU: nk30/30-tv-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
The NK30/30-TV-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 30x40x30mm.
The IKO equivalent is TAF304030.
| NK | 30 | /30 | TV | XL |
|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 30mm Bore Size | 30mm Width | Cage Made from Glass Fibre Reinforced Polyamide | X-Life Bearing |
Product Information
Technical Data
Inside Diameter (mm):
30
Outside Diameter (mm):
40
Width (mm):
30
Under Roller Diameter (mm):
30
Cage Type:
Glass Fibre Reinforced Polyamide
Fatigue Load Rating (kN):
12.9
IKO Equivalent:
TAF304030
Dynamic Load Rating (kN):
42
Limiting Speed Rating (r/min):
14800
Reference Speed Rating (r/min):
8200
Static Load Rating (kN):
69
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-20°C/-4°F
DescriptionThe NK30/30-TV-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 30x40x30mm. The IKO equivalent is TAF304030.
Product InformationBRAND: SKU:nk30/30-tv-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.092 kg Technical DataInside Diameter (mm):30 Outside Diameter (mm):40 Width (mm):30 Under Roller Diameter (mm):30 Cage Type:Glass Fibre Reinforced Polyamide Fatigue Load Rating (kN):12.9 IKO Equivalent:TAF304030 Dynamic Load Rating (kN):42 Limiting Speed Rating (r/min):14800 Reference Speed Rating (r/min):8200 Static Load Rating (kN):69 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||||
